Navistar 3900FC Systems

Back to Navistar Exhaust Systems

More Axle Pipes at Bottom of Page



Passenger Side Rear Exhaust System- DT/DTA 360, DT/DTA 466 - Code 07AAX w/o Air Suspension



159"- 197" WB- XH4TF50
212" WB- XH4TF49
229" WB- XH4TF48
Rear Tailpipe
159"-197" WB- XH4TR20
212"-229" WB- XH4TR18

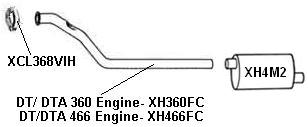

INTERCHANGES: XH360FC-1684275C1, XH466FC- 1684276C1, XH4M2- 2018471C1, XH4TF50- 1680061C2, XH4TF49-

1680062C2, XH4TF48- 168000063C2, XH4AX- 482168C4, XH4TR20-1678074C1, XH4TR18- 1678074C1





Passenger Side Rear Exhaust System- DT/DTA 360, DT/DTA 466 - Code 07AAX w/ Air Suspension



159"- 197" WB- XH4TF50
212" WB- XH4TF49
229" WB- XH4TF48
Rear Tailpipe
XH4TR10

INTERCHANGES: XH360FC- 1684275C1, XH466FC- 1684276C1, XH4M2- 2018471C1, XH4TF50- 1680061C2, XH4TF49-

1680062C2, XH4TF48- 1680063C2, XH4AX2- B1610293C3, XH4TR10- 482622C1



Genesis Front Engine & Navistar 3900FC- Passenger Side Muffler- Drivers Side Tailpipe

- DT/DTA 360, DT/DTA 466- Code 07AAW w/o Air Suspension



159"- 197" WB- XH4TF50
212" WB- XH4TF49
229" WB- XH4TF48

Rear Tailpipe
159"-197" WB- XH4TR20
212"-229" WB- XH4TR18



INTERCHANGES: XH360FC-1684275C1, XH466FC- 1684276C1, XH4M2- 2018471C1, XH4TF50- 1680061C2, XH4TF49-

1680062C2, XH4TF48- 168000063C2, XH4AX-DR - 1608381C1, XH4TR20-1678074C1, XH4TR18- 1678074C1



Passenger Side Muffler - Drivers Side Tailpipe - DT/DTA 360, DT/DTA 466 - Code 07AAW w/ Air Suspension



159"- 197" WB- XH4TF50
212" WB- XH4TF49
229" WB- XH4TF48
Rear Tailpipe
XH360TR2

INTERCHANGES: XH360FC- 1684275C1, XH466FC-1684276C1, XH4M2- 2018471C1, XH4TF50- 1680061C2, XH4TF49-

1680062C2, XH4TF48- 1680063C2, XH4AX2- B1610293C3, XH4TR8- 1618487C2, XH4TR7- 1618489C2

Drivers Side- Exits In Front of Rear Wheels- DT/DTA 360, DT/DTA 466- Code 07AAS
159"- 197" WB- XH4TF45
212" -229" WB- XH4TF43
XH4DSE Side Exit & Tailpipe

INTERXCHANGES: XH360FC- 1684275C1, XH466FC- 1684276C1, XH4M2- 2018471C1, XH4TF45- 1680288C2, XH4TF43-

1684276C1, XH4DSE- 1680285C1



Passenger Side- Side Exit- DT/DTA 466- Code 07AAG



158" WB- XH4TF47
183" WB- XH4TF46
211" WB- XH4TF44
XH4PSE

INTERCHANGES: XH360FC- 1684275C1, XH466FC- 1684276C1, XH4M2- 2018471C1, XH4TF47- 1680286C2, XH4TF46-

168028C2, XH4TF44- 1680289C2, XH4PSE- 2000976C1



Drivers Side System- Code 07AAN- 3800 Series- DT/DTA 360- 152" WB



INTERCHANGES: XH360XTA-1621874C1, XH4M2- 2018471C1, XH4AX-DR2- 1622606C1, XH4TR3- 482622C1

Drivers Side System- Code 07AAN- 3800 Series- DT/DTA 360- 170" WB & Up

170" - 236" WB- XH4TF39
254" WB- XH4TF38
276" WB- XH4TF37
Rear Tailpipe
170"-193" WB- XH4TR3
218"-236" WB- XH4TR2
254"-276" WB- XH4TR5
Rear Tailpipe
170"-193" WB- XH4TR3 Replaces OE #482622C1
218"-236" WB- XH4TR2 Replaces OE #482624C1
254"-276" WB- XH4TR5 Replaces OE #577265C1

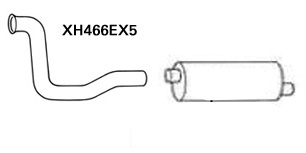

INTERCHANGES: XH466EX5- 2013204C1, XH4M2- 2018471C1, XH4TF39- 1621878C1, XH4TF38- 1621879C1, XH4TF37-

1621880C1, XH4TR3- 482622C1, XH4TR2- 482624C1, XH4TR5- 577265C1



Drivers Side System- Code 07AAN- 3800 Series- DT/DTA 408 & 466 NGD - 152" WB





INTERCHANGES: XH466EX5- 2013204C1, XH4M2- 2018471C1, XH4AX-DR2- 1622606C1, XH4TR3- 482622C1



Drivers Side System- Code 07AAN- 3800 Series- DT/DTA 408 & 466 NGD - 170" WB & Up



170" - 236" WB- XH4TF39
254" WB- XH4TF38
276" WB- XH4TF37
Rear Tailpipe
170"-193" WB- XH4TR3
218"-236" WB- XH4TR2
254"-276" WB- XH4TR5

INTERCHANGES: XH466EX5- 2013204C1, XH4M2- 2018471C1, XH4TF39- 1621878C1, XH4TF38- 1621879C1, XH4TF37-

1621880C1, XH4AX-DR- 1608381C1, XH4TR3- 482622C1, XH4TR2- 482624C1, XH4TR5- 577265C1



Passenger Side Exhaust System- Code 07ABC- DT/ DTA 360, Pre-NGD DT/DTA 466-3800 Series- 152" WB



INCLUDES: XH466EX5-2013204C1, XH360XTA- 1621874C1, XH4M2- 2018471C1, XH4AX3- 1622214C1, XH4TR3- 482622C1



Passenger Side Exhaust System- Code 07ABC- DT/DTA 360, Pre-NGD DT/DTA 466- 3800 Series- 170" WB & Up



170" - 236" WB- XH4TF39
254" WB- XH4TF38
276" WB- XH4TF37
Rear Tailpipe
170"-193" WB- XH4TR3
218"-236" WB- XH4TR2
254"-276" WB- XH4TR5

INCLUDES: XH360XTA- 1621874C1, XH4M2- 2018471C1, XH4TF37- 1621880C1, XH4TF38- 1621879C1, XH4TF39- 1621878C1,

XH4AX-DR- 1608381C1, XH4TR3- 482622C1, XH4TR2- 482624C1, XH4TR5- 577265C1



Passenger Side Exhaust System- Code 07ABC- DT/DTA 408 & 466 NGD- 3800 Series- 152" WB



MUFFLER XH4M2
INTERCHANGES: XH466EX5- 2013204C1, XH4M2- 2018471C1, XH4AX3- 1622214C1, XH4TR3- 482622C1



Passenger Side Exhaust System- Code 07ABC- DT/DTA 408 & 466 NGD- 3800 Series- 170" WB & Up



170" - 236" WB- XH4TF39
254" WB- XH4TF38
276" WB- XH4TF37
Rear Tailpipe
170"-193" WB- XH4TR3
218"-236" WB- XH4TR2
254"-276" WB- XH4TR5

XH4M2 Muffler



NTERCHANGES: XH466EX5- 2013204C1, XH4M2- 2018471C1, XH4TF37- 1621880C1, XH4TF38- 1621879C1, XH4TF39-

1621878C1, XH4AX- 482168C4, XH4TR3- 482622C1, XH4TR2- 482624C1, XH4TR5- 577265C1

I

Axle Pipes & Tailpipes - Air Suspension 1997 & Later



XH4AX7 Replaces IC #3544141C1
XH4TR25 - Passenger Side Exit Pipe- Replaces IC #3543496-7-8-9C1 66-72 Passengers

XH4TR28 - Driver Side Exit Pipe- Replaces IC #3543464-5-6-7C1 66-77 Passengers
